Thread seal are used to maintain IP rating between cable gland and Equipment, enclosure. It is necessary to fit on entry thread of cable gland.
Material:
White Nylon, also available in Red Colour
Size:
M16 to M90 and 1/2”NPT to 3” NPT
Thickness:
Unique thickness of thread is 2mm
Application:
For use on cable gland entry thread
Features:
To maintain the IP rating between equipment & cable gland it may be necessary to fit an entry thread sealing washer at the gland entry interface. It is specially used when flameproof, explosion proof or increased safety protection is required.

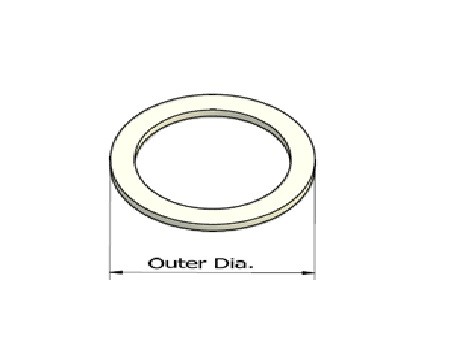

Entry Thread Seal Dimension Chart
|
Metric Size |
NPT Size |
Outer Dia. (OD) |
|
M16 |
1/2” |
22 |
|
M20 |
3/4" |
27 |
|
M25 |
1” |
35 |
|
M32 |
1.1/4” |
42 |
|
M40 |
1.1/2” |
49 |
|
M50 |
2” |
62 |
|
M63 |
2.1/2” |
75 |
|
M75 |
3” |
90 |
|
M90 |
3.1/2” |
110 |
