Material:
Any special brass material compositions as per customer’s requirement.
Threads:
ISO metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF etc. Any threads as per customer's design
Finish & Coating:
Brass Natural, Electro Tinned, Nickel, Chrome, Led, Silver, Gold, Zinc Blue etc. Or any finishing as per customers requirements
Application:
Stop plug used to close thread entries or means of sealing & Stopping unused thread entries in flame proof enclosures.
Size:
M12 to M63
Accessories:
Thread seal or ‘O’ Ring
|

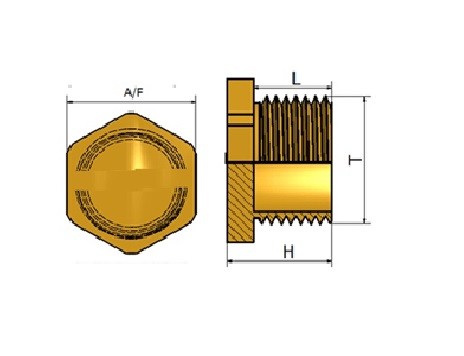

Size |
Thread |
Thread Length L |
Total Height H |
Wrench Size A/F |
|
M 12 |
M 12X1.5 |
12 |
15 |
14 |
|
M 16 |
M 16X1.5 |
12 |
15 |
18 |
|
M 20 |
M 20X1.5 |
12 |
15 |
23 |
|
M 25 |
M 25X1.5 |
15 |
18.5 |
28 |
|
M 32 |
M 32X1.5 |
15 |
19 |
36 |
|
M 40 |
M 40X1.5 |
15 |
19 |
44 |
|
M 50 |
M 50X1.5 |
15 |
20 |
54 |
|
M 63 |
M 63X1.5 |
15 |
20 |
67
|
