Material:
Any special brass material compositions as per customer’s requirement.
Finish & Coating:
Brass Natural, Electro Tinned, Nickel, Chrome, Led, Silver, Gold, Zinc Blue etc. Or any finishing as per customers requirements
SIZE:
M20 to M90 and ½” NPT to 3” NPT
APPLICATION:
Earth tags are used between Cable Gland entry and equipment to provide earth bond connection. Earth Tag produces earth tag produces earth bound connection for electricity continuation.
|

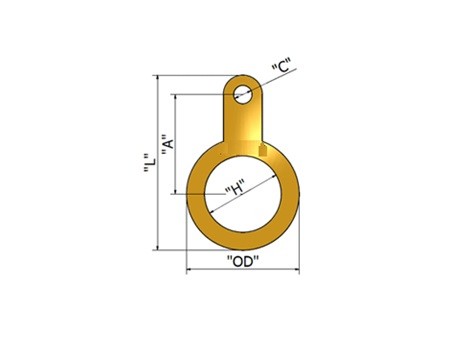

Gland Size "H” |
"OD" |
"L" |
"A" |
For Screw "H" |
Without Screw "H" |
|
M20 |
29.25 |
48 |
29.25 |
M6 |
6.75 |
|
M25 |
37 |
57.5 |
36 |
M6 |
6.75 |
|
M32 |
44 |
69.75 |
46.75 |
M6 |
6.75 |
|
M40 |
53 |
78 |
54 |
M6 |
6.75 |
|
M50 |
64.25 |
90.75 |
65.5 |
M6 |
6.75 |
|
M63 |
79.5 |
117 |
86 |
M6 |
6.75 |
|
M75 |
96.35 |
133.5 |
97.15 |
M6 |
6.75 |
|
M90 |
113.75 |
159.75 |
114.5 |
M6 |
6.75 |
